WT 5935C-500 Thermal pad

WT 5935C-500 High thermal conductivity pad uses the carbon fiber oriented tableting technology developed by WT. It is superior to traditional thermal pads in thermal conductivity and product elasticity. The product is made of silicone rubber filled with carbon-based materials.

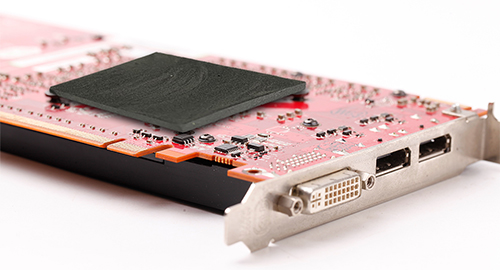

Typical Application

● High end equipment and automotive electronic cooling and heating components, such as electronic devices, semiconductor memory devices, etc

● General-purpose inverter, Medical equipments, DSC

● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED)

● Laser HUD light source

● Consumer microelectronics and hand held electronic device（like mobile phone, computer, etc）

● Base station, IGBT module

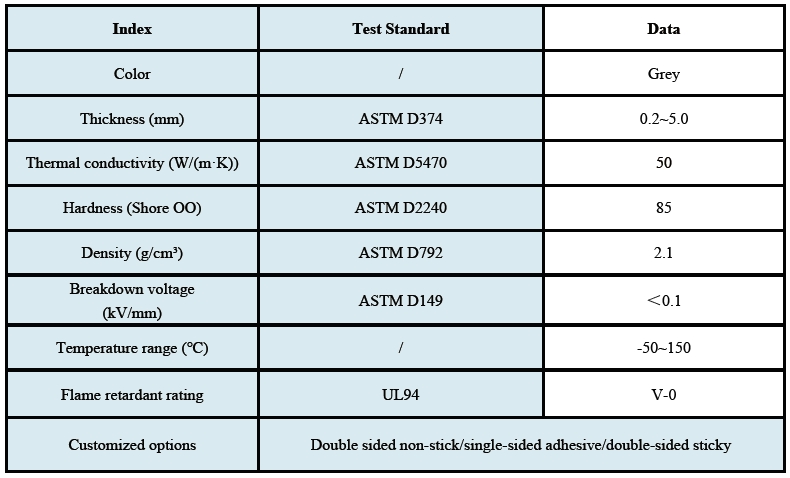

Parameter Index

Function and Characteristics

● High thermal interface performance：45~55W/(m·K)

● Excellent flexibility: can be perfectly embed in uneven interface

● High applicability: stable performance under -50~150℃

● Excellent flame performance: meet UL94-V0 level

● Meet ROHS, REACH standard

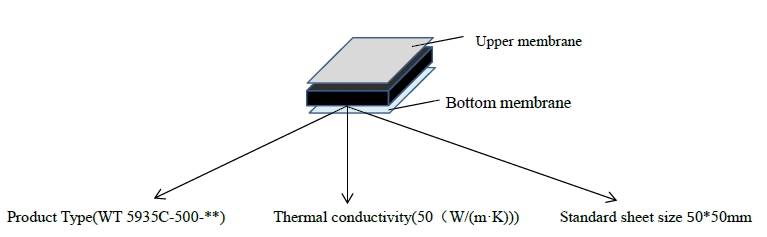

Dimensions

（Effective size 50*50mm, size within product specifications can be customized.

If it is not within the specifications, it needs to be customized with the factory）

Remarks

For the data sheet, Waermtimo reserves the right to final modification.
